Microsoft Access Split Database Architecture to Support Multiuser Environments, Improve Performance, and Simplify Maintainability

Microsoft Access ProductsProvided by Aparna Pophale, Quality Assurance Specialist

Microsoft Access lets you easily create databases to store and present your data in forms and reports. When starting, a database may be very simple and trivial, but over time, it may become more important as you add data, features, and even share it with others. It gains a life of its own and the overall design becomes critical.

One of the most important architectural designs is splitting the database into a front-end and back-end database. This is how Access is designed to let you support multiuser databases and significantly simplify how you enhance the application over time.

Separating your application and data databases enables you to support multiple users and upgrade the application without wiping out their data. Assuming the application doesn’t change that often, the separation also makes it easier to just backup the data database since only that is changing everyday.

A Split Database Design: Front-End/Back-End Databases

Splitting a database is a relatively simple concept. You take an existing Access MDB/ACCDB database with its tables, queries, forms, reports, macros, modules, etc. and divide it into two databases:

  • The “Back-End” database just contains the tables
  • The “Front-End” database contains the application objects (everything except the tables) and links to the tables in the back-end database

This design is especially useful in multi-user environments where the back-end database is stored on a network and contains the shared data. Each user then has a copy of the front-end database on their desktop pointing to the shared database.

In multi-user environments, the front-end database can also contain tables that are private to the user. These local tables can store the user’s settings, selections, temporary or intermediate tables for processing data or reports, etc.

Reasons to Split a Microsoft Access Database

Here are some of the major reasons to use a split database architecture:

Multiuser Support

Each user has the application and private tables in their copy of the front-end database. They share the back-end database without locking it exclusively.

With temporary tables for each user in their front-end database, conflicts and collisions among multiple simultaneous users are avoided.

Deploy Updates without Worrying about Data

Application enhancements are simplified since they are made in the front-end database without worrying about changes to the data in the back-end database. Releasing new versions and bug fixes becomes much easier since only the application part needs to be distributed which automatically uses the current data. Of course, if you modify table structures or add/delete/rename tables, you’ll need to apply those changes to the back-end database.

Without a split database architecture, when you create a new version, you’ll need to update the database AND any data your users changed since your last copy.

Improve Performance and Minimize Database Corruption

Performance can be significantly enhanced and network traffic reduced when the user has a copy of the front-end database installed on their desktop rather than running it off the network each time they use it.

Without splitting a database, multiple users running the same database on the network increase the chance of database corruption. The split database design minimizes this problem and avoids code corruption from impacting data corruption.

Simplify System Administration and Maintenance

Since the data is stored centrally and can be backed up and compacted, database administration is simplified. A single master front-end application database is copied to each user’s machine, but is not necessary to back up.


The split database architecture provides an opportunity to expand a database size beyond the 2 GB limitation of Access since the front-end database can link to multiple back-end databases if necessary.

This also sets the stage for migration to SQL Server (or SQL Azure). If the application evolves to need the features of SQL Server, you can still use the front-end database and link to data stored in SQL Server.

How to Split Your Microsoft Access Database

You can manually split your database by:

  1. Copying it
  2. Deleting all the non-table objects from one of them and make that your back-end database
  3. Delete all the tables from the other “front-end” database, then link to the tables in the back-end database.

Or, you can use the Microsoft Access Database Splitter Wizard to split the Access database. Consider this example:

Open a Tasks template form Microsoft Access. The Tasks database is designed with tables, queries, forms and reports. The database contains three tables Contacts and Tasks (2007 version also have Filters). To open a Database Splitter, select Database Tools tab from Access ribbon and in the Move Data pane, click on Access Database option.

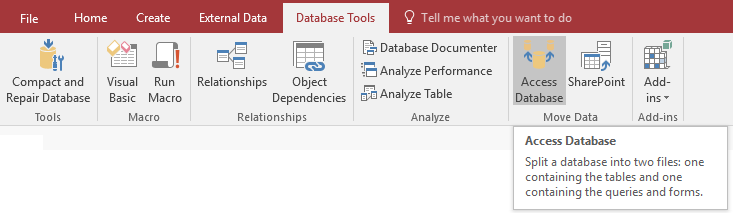

Sample Microsoft Access Database to Split

Database Splitter wizard starts.

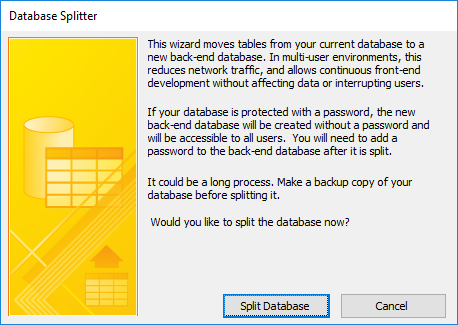

Database Splitter Wizard for Microsoft Access

Click on Split Database button and it opens the Save dialog window. Provide name for back-end copy.

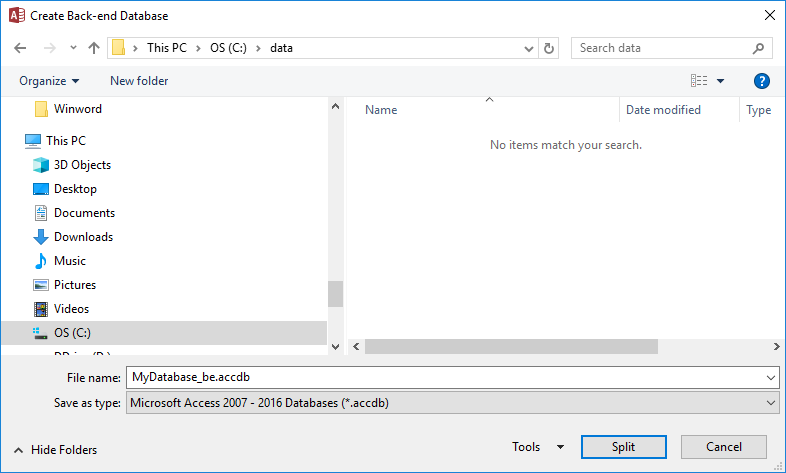

Database Splitter Wizard: Back end location

So "Task_Back-EndCopy.accdb" name is provided here for Tasks database. This back-end database copy can be saved on a network to share among multi users and front –copy can be available to each user separately at their own desktop.

When the confirmation message box shows, click the OK button.

Database Splitter Confirmation

Now take a look at the tables in the Navigation pane, which show small arrows at the left side of the table names. This indicates that these three tables are now linked to the Tasks database, and resides in the Back-end database.

Linked Tables to Back End Microsoft Access Database

So this way the front-end copy will have all forms, reports and queries (no tables). Data changes made in the front-end copy will also update the back-end copy, which stores only tables. Now add a new record to the Contact List, save and close the database.

Adding a New Record to the Linked Table

If you open back-end copy of the database and select Contacts table. This new record appears in the table.

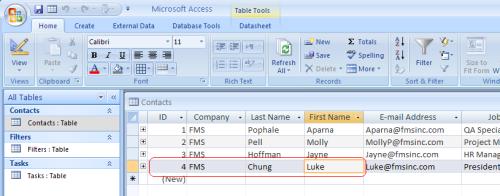

Back end Access database with updates

This way all users work on the same database using their own front-end copy, and data changes reflect in the back-end database. Split database architecture gives a look of Client-Server database technology by storing database tables at back-end server and all programming part such as forms, function, queries at front-end client side.

Access databases can link to older versions of Access database formats. So even if the front-end database is in an Access ACCDB format, the linked back-end database can be an MDB in Access 2000 or 2002-2003 formats or an ACCDB.

Keeping Private Tables

If you want to have private tables in the front-end database, you’ll want to import them into your front-end database and remove them from your back-end database. One of the amazing and powerful features of Microsoft Access is its ability to use data from a local or linked source in its queries, forms, reports, macros, and modules. If you need to change the table’s location later, you can move it without impacting the objects that depend on it.

One caveat is that if you have tables with field lookups to other tables, those tables should be in the same database. Otherwise, if you open that source database and that table, its lookups won’t appear which can cause data entry and data integrity issues.

Relinking Microsoft Access Tables

Tables can be relinked interactively with the Linked Table Manager or programmatically via VBA.

Linked Table Manager

Once the database splitting procedure is finished, you can relink the linked tables using Linked Table Manger.

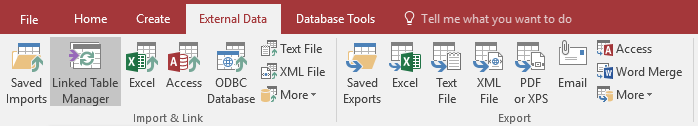

  • In Access 2010 and 2013, from the External Data ribbon, select Linked Table Manager
  • In Access 2007, it's on the Database Tools ribbon
  • In Access 2003 and earlier, it's under Tools, Database Utilities

Linked Table Manager for Microsoft Access

Select the table names which you want to update and click on Ok button. If you want to link to a database located in another drive or folder, check the Always prompt for new location box. This is common if you develop the front-end database on your local drive with a local copy of your back-end database (to avoid testing on the live data), then need to deploy it.

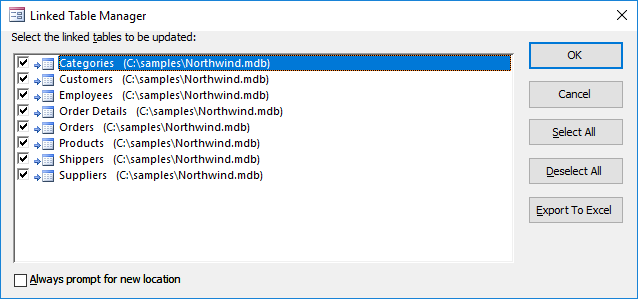

Linked Table Manager Wizard to Select Tables and New Location

Always make sure that links are correct before you distribute them. It shows message for successfully linking.

Relinking Tables Programmatically using VBA

You can also write some VBA module code to update a linked table (from our royalty-free source code library Total Visual SourceBook):

Function ReLinkTable(strTable As String, strPath As String) As Boolean
  ' Comments: Re-links the named table to the named path
  ' Params  : strTable     Table name of the linked table
  ' strPath : full path name of the database containing the real table
  ' Returns : True if successful, False otherwise
  Dim dbsTmp As DAO.Database
  Dim tdfTmp As DAO.TableDef
  Dim strPrefix As String
  Dim strNewConnect As String

  On Error GoTo PROC_ERR

  Set dbsTmp = CurrentDb()
  Set tdfTmp = dbsTmp.TableDefs(strTable)
  strPrefix = Left$(tdfTmp.Connect, InStr(tdfTmp.Connect, "="))
  strNewConnect = strPrefix & strPath

  tdfTmp.Connect = strNewConnect

  ReLinkTable = True

  Exit Function

  ReLinkTable = False
  Resume PROC_EXIT
End Function

Updating VBA Code for Linked Tables

Adjusting Seek Statements

For the most part, separating the data into a data database does not affect your application. The queries based on the linked tables remain the same, as do your forms, reports, and code. The main exception is Seek statements. Seek statements are used in code to find a record. They are very fast because they use an index you specify. For example, for a given table (strTable), index (strIndex), and search values (varValue1 and varValue2):

Dim dbs As DAO.Database
Dim rst As DAO.Recordset
Dim fFound As Boolean

Set dbs = CurrentDb
Set rst = dbs.OpenRecordset(strTable)
rst.Index = strIndex
rst.Seek "=", varValue1, varValue2
fFound = Not rst.NoMatch

However, this code fails if the table is linked. This is very frustrating and many developers resort to the FindFirst command instead. Unfortunately, FindFirst is very inefficient. It does not use an index and performs a slow sequential search through the entire table. This can be very painful for large tables. The good news is that you can use Seek on linked tables. It’s a matter of properly identifying the database where the table resides. Often, you will know the linked database name and you can easily set the database variable (where strLinkedDB is the linked database name):

Set dbs = DBEngine.OpenDatabase(strLinkedDB)

The example below is a general solution where the code tests a table and changes the database variable if it is linked:

Dim dbs As DAO.Database
Dim tdf As DAO.TableDef
Dim strConnect As String
Dim strLinkedDB As String
Dim rst As DAO.Recordset
Dim fFound As Boolean

Set dbs = CurrentDb
Set tdf = dbs.TableDefs(strTable)

' Connect = "" if it is not a linked table
strConnect = tdf.Connect
If strConnect <> "" Then
  ' Database name follows the "=" sign
  strLinkedDB = Right$(strConnect, Len(strConnect) - InStr(strConnect, "="))

  ' Change database handle to external database
  Set dbs = DBEngine.Workspaces(0).OpenDatabase(strLinkedDB)
End If

Set rst = dbs.OpenRecordset(strTable)
rst.Index = strIndex
rst.Seek "=", varValue1, varValue2
fFound = Not rst.NoMatch

Your front-end database is now properly linked and ready for deployment across your network.

Managing Front-End Databases on Each Desktop

With a split database design, you'll need to distribute the front-end database to each user. By residing on their local machine, the performance of your application will improve. However, this adds an extra level of complexity when your application changes.

Knowing an Update Exists

If you have a new version of your front-end database, you'll need to replace each user's database with the new one. This means your front end database needs to know what version it is and not run if it's not the current one, and provide a mechanism to get an update.

This can be easily done by adding a version table in the front-end database and the back-end database. You manually update the table in the front-end database with its version number when you create a new build. The back-end database contains the latest version number. When the front-end database starts, it compares the two tables and proceeds if the version is okay and stops if not. You'll then need a process to replace it.

Automate distribution of front-end Microsoft Access database applicationsAutomating the Version Detection and Update Process

FMS offers a commercial software product, Total Access Startup, to simplify the deployment of your Access applications. It lets you centrally manage each Access application by identifying the master front end database, the location where it should be installed on each user's desktop, and its version.

Rather than running the Access database directly, a shortcut is provided to each user so the Total Access Startup program verifies the right version of Access is being launched with the right version of your front-end database. If the current local database doesn't exist or is out of sync, the latest version is installed on the user's desktop along with any setup routines that are required. The process is seamless and you can easily change the deployments centrally. Only one copy is needed to manage all the Access applications across your network.

Additional Resources

Multi-user Microsoft Access applications are pretty important to your organization. FMS offers additional resources designed for this environment:

  • Total Access Analyzer to help you create and diagnose your databases to find errors, suggest enhancements, and improve performance.
  • Total Visual Agent to ensure your database maintenance tasks like database backups and compacts are scheduled and executed. Can also launch processes on a recurring basis.
  • Total Access Admin to monitor in real-time who’s entering and exiting in your Access database.

Performance Tip

Microsoft Resource


Microsoft Access is a very powerful platform that lets you easily create solutions that can significantly improve the productivity of your team. With a properly split database architecture, you’ll find it even easier to create, enhance, and share your application.

Good luck!
